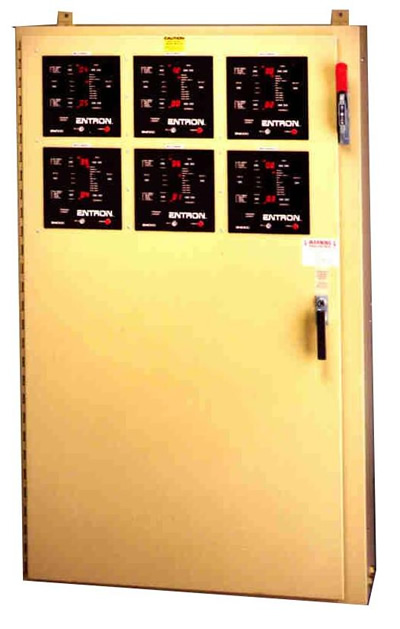

EN1000/EN1001 Multiple and LDC

Single Cabinet Controls

The Multiple EN1000/EN1001 Control is designed to control several welders from a central location. Controls can be configured to fire individually, in a cascade sequence, in an LDC mode, or any combination thereof. Each control position is a fully functional EN1000/EN1001 Single Contactor Control, each with 3 valve outputs.

Cascade Manual EN1000/EN1001



Details

Capabilities

  • 50 Unique Schedules
  • Chained and Successive Modes
  • Repeat / Non-Repeat
  • Weld and Valve Control Relays
  • 3 Valve Outputs
  • Multiple Weld Programming
  • Multiple Job Set-ups
  • Easily Programmed
  • Program only the functions required

Options

  • Networking – provides communication to multiple controls
  • Remote Data Accessories – enables remote programming and backup functions
  • External Binary Schedule Select (S49)
  • Integrated Pressure Sense and Control
  • Valve Select 1 of 7 (VS) – provides 7 additional outputs
  • Water Flow Switch

Features

  • Spot Sequence
  • Pulsation Sequence
  • Upslope / Downslope
  • Quench / Temper
  • Forge Delay
  • Multiple Weld/Multiple Current Sequence
  • Preheat / Postheat
  • External Schedule Select
  • Seam Sequence
  • Brazing
  • Flash Welding
  • Retraction
  • Squeeze Delay
  • Stepper
