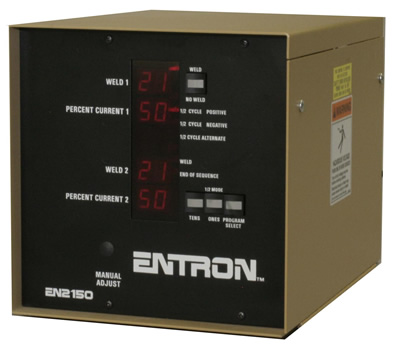

EN2150

Bench Controls without Valve

The EN2150 Series Control is a microprocessor-based resistance welding control equipped with
dual schedule, dual heat, with positive or negative Half Cycle feature. Initiation of two different
weld schedules (Squeeze, Weld, Hold, and Percent Current) are available on separate initiation
inputs.

Capabilities

• Two Schedules
• Weld Control Relays
• End of Sequence Output
• Dual Weld Programming
• Programmable for Half Cycle Operation and Polarity Reverse
  • Half Cycle Positive Initiation
  • Half Cycle Negative Initiation
  • Alternate Half Cycle Program

Options

• Rotary Input Board – allows for manual adjustment of weld current

Features

• Spot Sequence
• Dual Weld/Dual Current
• LED Status Indicators
• All functions displayed simultaneously
