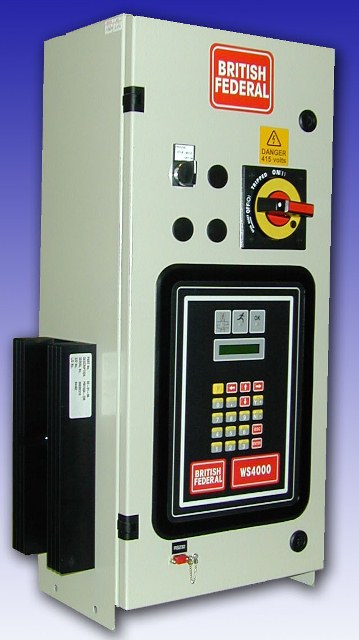

WS4000 Series

The WS4000 Series is a control system which is flexible and versatile, with features evolved from high-level automation installations. It has an extensive range of welding features and supports a number of communication networks through options and accessory adapters.

Capabilities

• Common processor platform for dedicated robot installations, hard automation, and manual welding stations
• Independent control of one or two welding guns
• Proportional Valve I/O standard (0-10 V or 4-20 mA)
• Extensive monitoring and diagnostics
• Common software with multi-mode operation

Options

• WS4000S – Advanced Seam Welding control with data recording functions
• WS4000A – Aerospace Welding control with data recording functions as well as dual proportional regulation
• Multiple fieldbus adapters – Profibus FMS; Interbus S; Profibus DP; DeviceNet; ControlNet; Ethernet; Interbus PCP

Features

• 192 weld programs
• 128 monitoring programs
• 24 electrode management programs
• Three-interval welding sequence
• Constant Current or Phase Angle control modes
• RS232
• Advanced security with password locks and Access Level Interface Customization

Software

WS98-4000/4000S/4000A PC Programming/Monitoring Software
